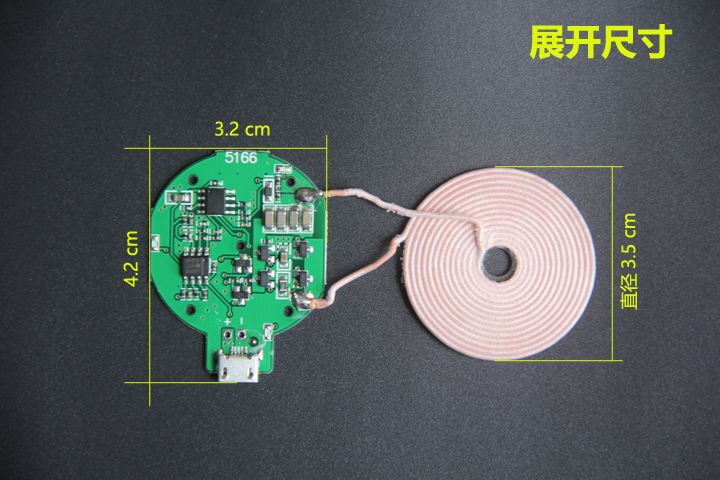

Coil QI Pass LED PCB Board Wireless Charger Transmitter Module Mini PCBA
Mini small wireless charger transmitter module mini PCBA coil QI pass led pcb board
PCB Printed Circuit Board (SMT) Product Capacity
| SMT Capacity |
| SMT Item | Capacity |
| PCB Max. size | 32mm*42mm |
| Chip component | 0201 package |
| Min.pin space of IC | 0.1mm |
| Min. space of BGA | 0.1mm |
| Max.precision of IC assembly | ±0.01mm |
| Assembly capacity | ≥2 million piots/day |
| DIP capacity | DIP production lines |
| Assembly testing | Bridge test,AOI test, X-Ray test, |
FCT(Functional Circuit Test) | Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement. |
PCB purposes
The reason the PCB has been used more and more widely is because it has many unique advantages, including the following.
1. Can be densified.For decades, the high density of printed boards has been able to develop with the improvement of integrated circuit integration and installation technology.
2. High reliability.Through a series of inspections, tests and aging tests, the PCB can be guaranteed to work reliably for a long time (service life, generally 20 years).
3. Designability.For all kinds of performance requirements of PCB (electrical, physical, chemical, mechanical, etc.), we can realize the design of printed board through design standardization, standardization, etc., with short time and high efficiency.
Productive.Adopt modern management, can carry out standardization, scale (quantity), automation and other production, to ensure the consistency of product quality.
4. Testability.Set up a relatively complete test method, test standard, a variety of test equipment and instruments to detect and identify the quality and service life of PCB products.
5. Assemblability.PCB products are not only convenient for various components to be standardized assembly, but also can be automated, large-scale mass production.At the same time, PCB and various components assembly parts can also be assembled into larger components, systems, until the complete machine.
